Mic qPCR Cycler
The Mic ensures fast and highly accurate results. This real-time PCR cycler is bundled into a small 2kg cube so you can bring it anywhere. The Mic PCR machine uses a patented magnetic induction technology to heat your samples and fan forced air for cooling. This means fast quantitative real time PCR results through rapid heating and cooling, with 35 cycles possible in under 25 minutes*. *Assays designed toward cDNA targets with short amplicon sizes and using fast cycling compatible Taq polymerases
Baca Selengkapnya Minta Penawaran Request DemoProduk data dan gambar Mic qPCR Cycler
Completing runs in under 40 minutes is the new standard with Mic: not the exception. Maintaining assay performance even at speed ensures you can trust that data.

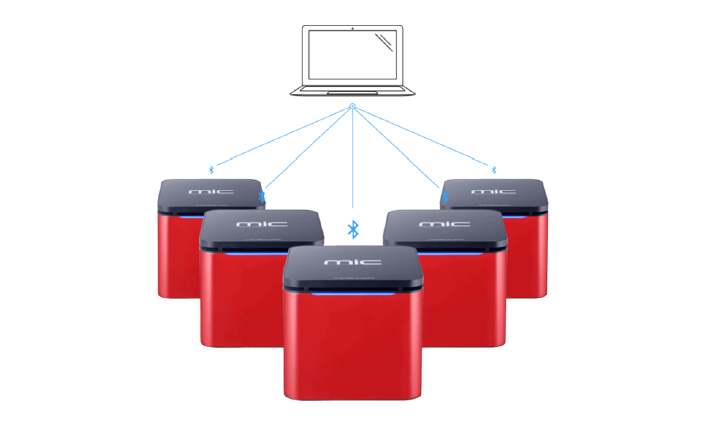

Multiple Mic qPCR instruments can be operated from one workstation so 48 becomes 96, and 96 becomes 192. As many as 10 instruments can connect to one PC.
Between its considered design and compact size, Mic is loved both in the lab and out in the field.
Physical Specification
Spesifikasi Mic qPCR Cycler
Physical
| Height: | 130mm (265mm lid open) |
| Width: | 150mm |
| Length: | 150mm |
| Weight: | 2 kg |
Thermal Performance
- Temperature Accuracy: ±0.25°C
- Temperature Uniformity: ±0.05°C (MIC-4+HRM) | ±0.10°C (MIC-2 and MIC-4)
- Ramp Rates: Heating 5°C/s | Cooling 4°C/s
- Temperature Input Range 35 – 99°C
Optical
- Detectors: Photodiode per channel
- Excitation Sources: High power LED for each channel
- Channels:
- Green Ex 465nm Em 510nm
- Yellow Ex 540nm Em 570nm
- Orange Ex 585nm Em 618nm
- Red Ex 635nm Em 675nm
- Acquisition Time: 1 second
Reaction Tubes
- Samples per Instrument: 48
- Reaction Volume Range: 5 – 30µL
Communication
- Type: USB 2.0 or Bluetooth
- PC Requirements: Windows 8 (32 bit) OS, Intel i5 2.4 GHz or equivalent processor, 4GB RAM, 1GB HD, .NET Framework 4.5.
Operating Environment
- Temperature: 18 – 30ºC
- Relative Humidity: 20 – 80%
