Myra Liquid Handling System
The world’s 1st liquid handling system that can see. Myra boasts state of the art algorithms and an integrated camera to ensure ultimate precision in your sampling. Save time with Myra’s speed, accuracy and user intuitive software. Run Myra and Mic instruments from the one user interface. No exporting or importing of sample names required. Just setup, run, and analyse all in one location. Calibrate our Myra pipetting robot at the click of a button. No more sticking your head under the hood and eye balling the positions. Myra does it all for you.
Baca Selengkapnya Minta PenawaranProduk data dan gambar Myra Liquid Handling System

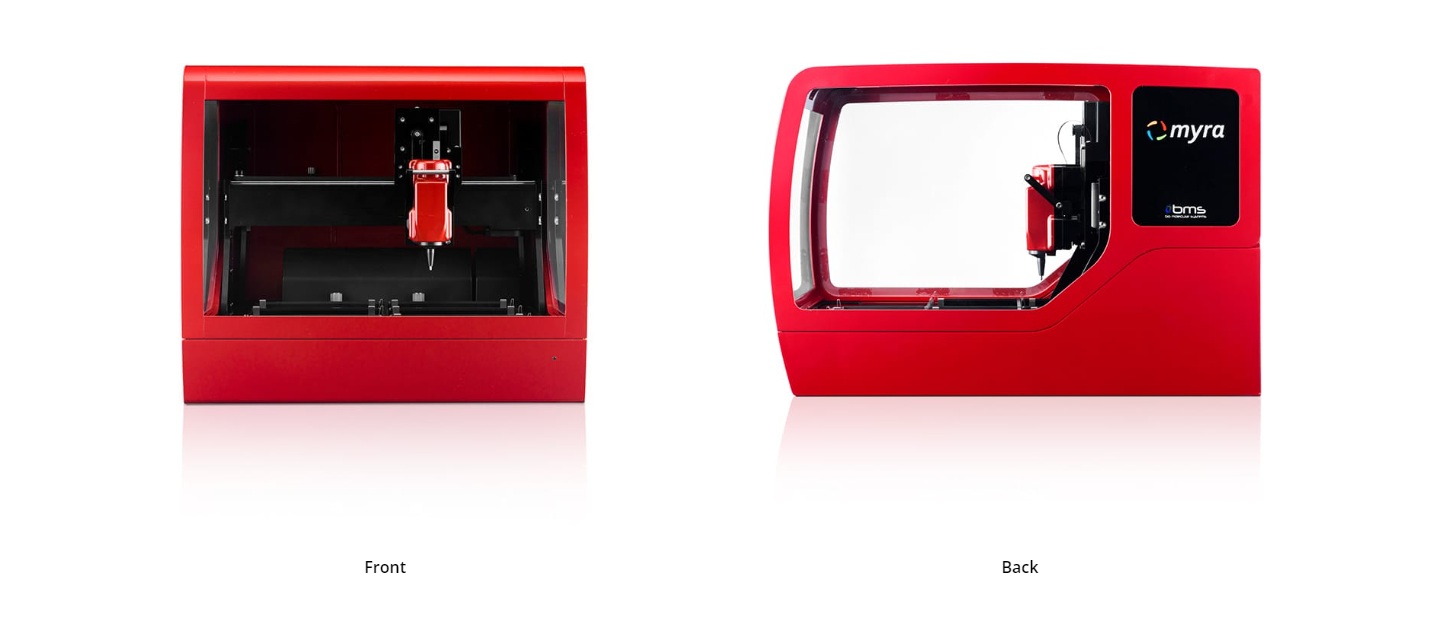

Myra Liquid Handler Front & Side View

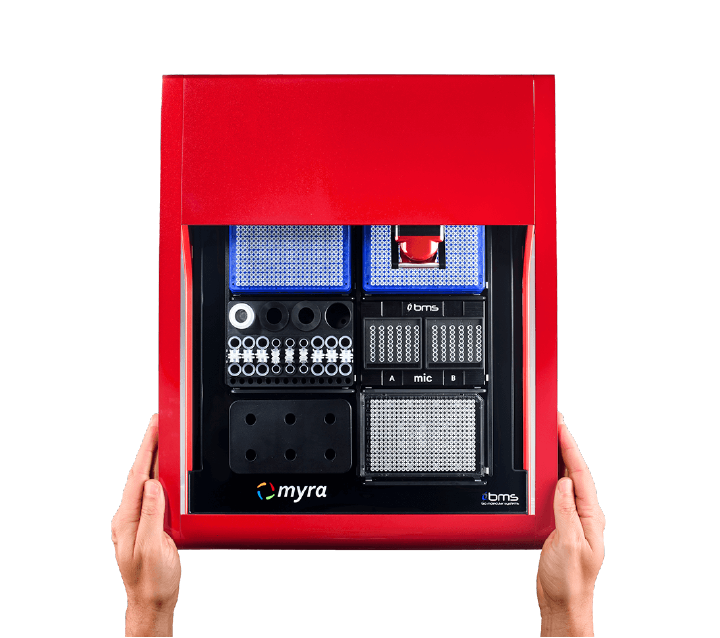

At less than 10kg and a footprint of less than 2ft2, Myra is half the size of other in class liquid handling systems.

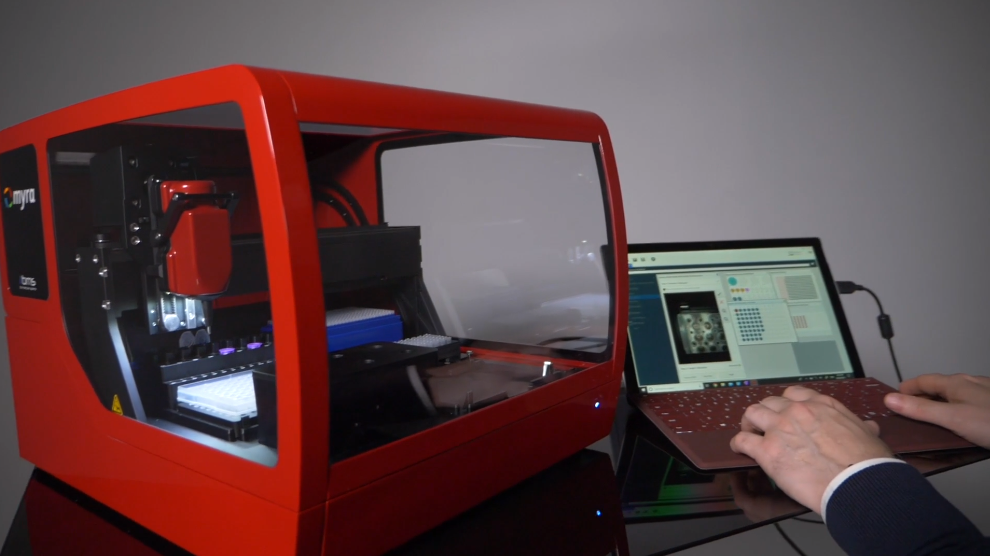

Save time with Myra’s speed, accuracy and user intuitive software.

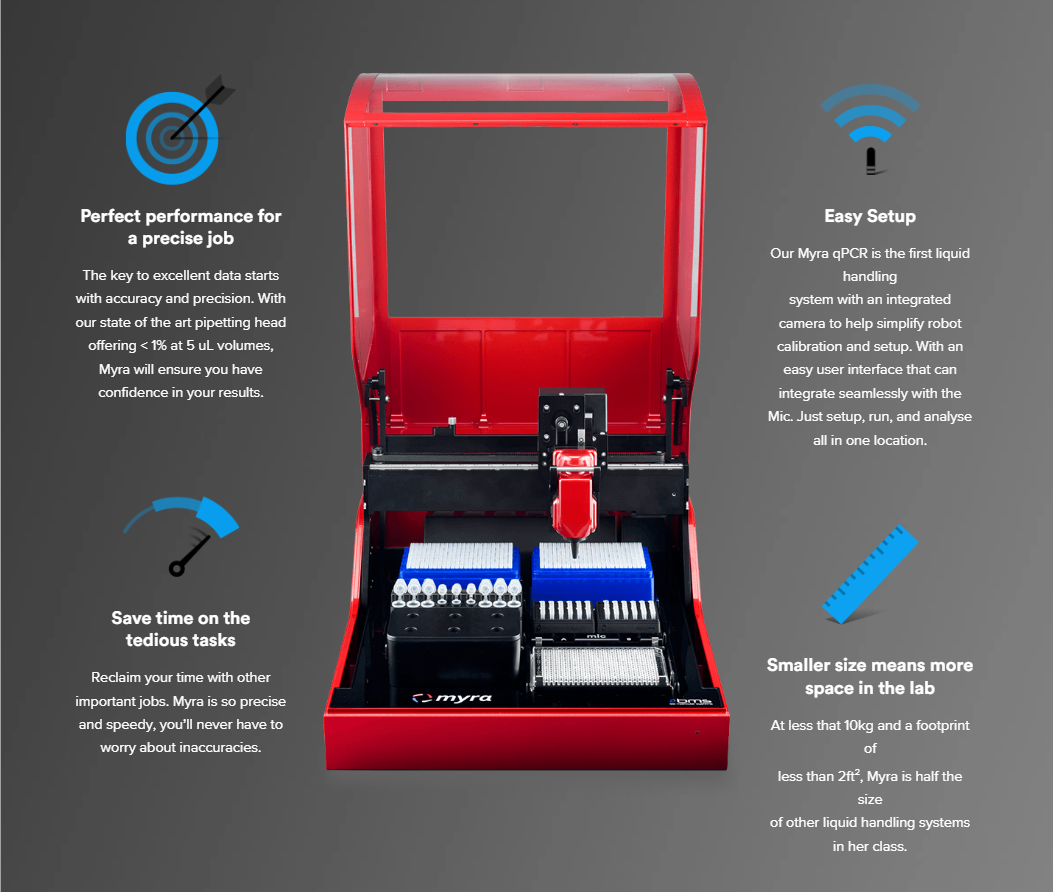

Perfect performance for a precise job, Easy Setup, Save time on the tedious tasks, Smaller size means more space in the lab
Spesifikasi Myra Liquid Handling System
Physical
- Height: 310 mm (610 mm lid open)
- Width: 350 mm
- Length: 460 mm
- Weight: 9kg
Performance
- Position control: Closed loop, 100 μm resolution
- Calibration: High precision camera
Pipette
- Pipetting volume range: 1 – 50 μL
- Liquid level detection: Pressure sensing
- Tips per rack: 384
- Dispense modes: Single
- Precision:
- 1 μL: < 10% CV
- 5 – 50μL: < 1% CV
- Accuracy:
- 1 μL: < 10%
- 5 – 50μL: < 1%
Contamination Control
- Tip disposal type: Internal enclosed waste container
- HEPA filter: 99.98% at 0.3 μm
- UV lamp: High intensity 70 mW 280 nm UV LED
Communication
- Type: USB 2.0
- PC Requirements: Intel i5 2.4 GHz or equivalent processor, 4 GB RAM, 5 GB HD, 1366 x 768 display
Operating Environment
- Temperature range: 18 – 30°C
- Humidity: 30 – 80%
