F.A.S.T.TM Liquid Handler

The F.A.S.T (Flow Axial Seal Tip) adalah sistem transfer cairan yang handal dan mudah digunakan yang dirancang untuk memindahkan viskositas cairan apa pun dengan cepat dengan perpindahan positif yang unik memiliki 96 saluran. Memiliki akurasi, presisi, dan keandalan yang tinggi untuk transfer sampel sampai volume yang rendah. F.A.S.T. juga merupakan sistem yang dapat menghemat waktu peneliti dan mengurangi biaya reagen.

Baca Selengkapnya Minta Penawaran
Produk data dan gambar F.A.S.T.TM Liquid Handler

Dimensi Fisik F.A.S.T.

Spesifikasi F.A.S.T.TM Liquid Handler

Specification Product


Personal Computer/ Notebook with minimum specification :

  • Operating System: Windows 7 64-bit
  • Processors Speed: Dual core 1 GHz
  • RAM: 1 GB RAM
  • Screen Resolution: 1280 x 960 pixels
  • Browser: Google Chrome Version 69

Electrical Specifications

  • 110-240 V, 50-60 Hz, 130 W typical, 200 W max. Standard or European outlet

Liquid Handling and Labware Features

  • Volume range: 100 nL to 13 uL (13 uL tips)
  •  Liquid viscosity range: Any type of liquid
  • Dispense mode: Contact dispensing
  • Liquid level detection: No
  • Transfer precision: 5% CV at 0.1 uL
  • microplate compatibility: 96- and 384- well microplate standard SBS footprint

Operating Requirements

  • Temperature: 21 °C ± 5 °C (70 °F ± 9 °F)

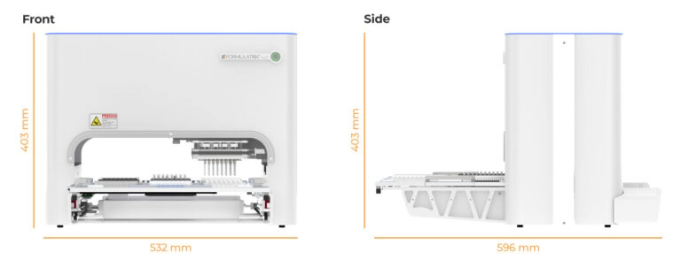

F.A.S.T. Physical Dimensions

  • Width: 532 mm
  • Height: 403 mm
  • Depth: 596 mm
  • Weight: 13 kg

Benefits

  • Fast: Save time on your liquid transfers with the unique 96-tip head
  • Flexible: Save on consumables by using your choice of 1, 8, 12, or 96 tips to transfer reagents between 96- and 384-well plates
  • Versatile: Perform cherry-picking, serial dilutions, and plate copies (broadcast, mother-daughter transfers) with ease
  • Liquid Class Agnostic: Forget having to program liquid classes ever again; the positive displacement tips mitigate the effects of viscosity on accuracy
  • Compact: Save on lab space as the system’s small footprint allows for desktop use yet is open for integration with complementary automation
  • Zero Cross-Contamination: The positive displacement disposable tips ensure the integrity of your samples without any risk of cross-contamination
  • Smart: Conduct your transfers with confidence as the system features multiple state-of-the-art failsafes including tip position sensors, automatic tip arrangement, and collision detection
